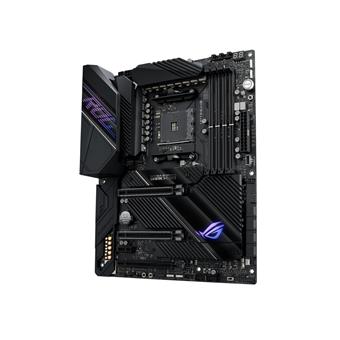

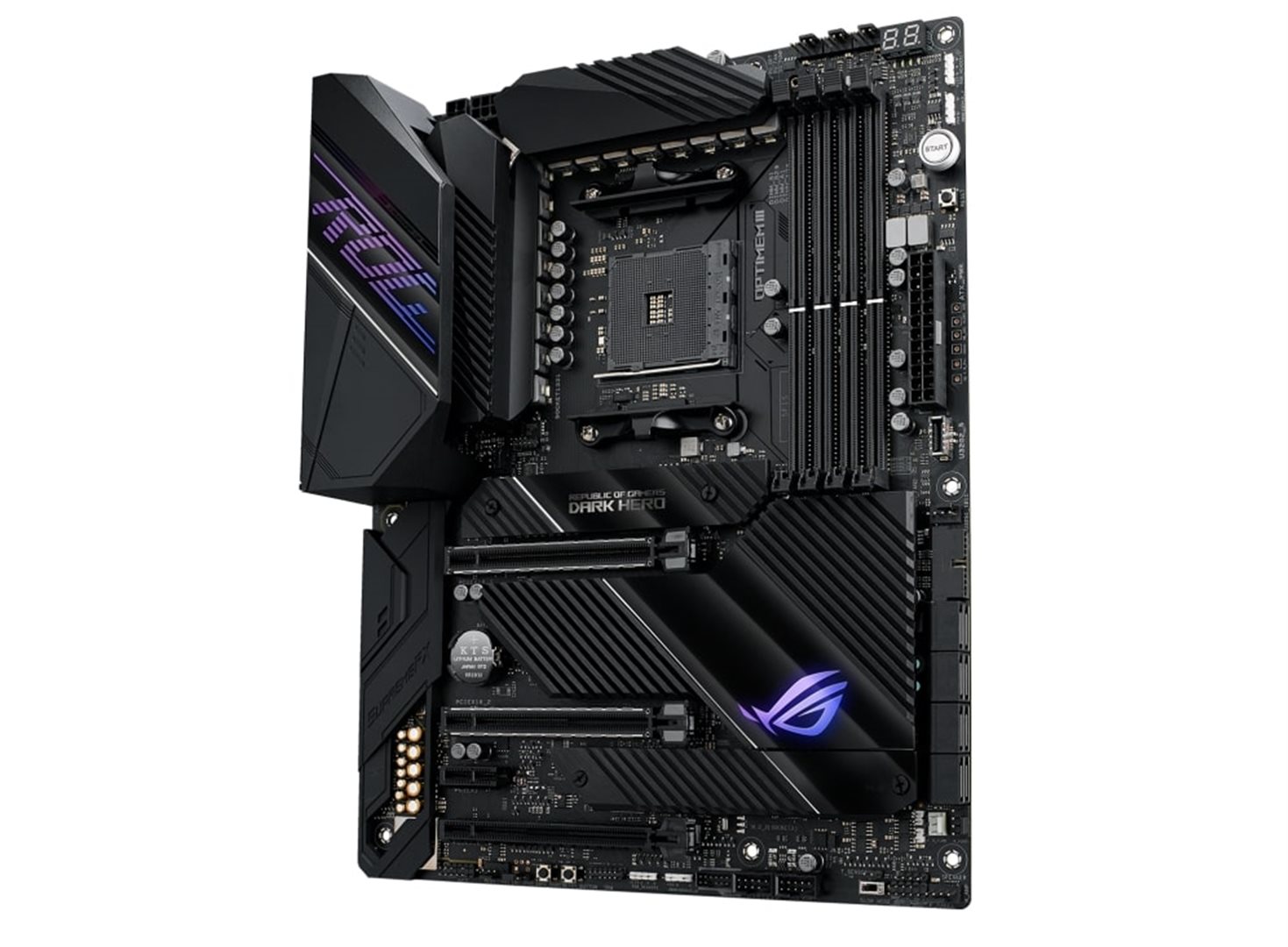

ASUS ROG CROSSHAIR VIII DARK HERO X570/ AM4/ ATX

Chipset: AMD X570

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:

• 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
• 5100(O.C)/5000(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• 3600(O.C.)/3466(O.C.)/3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• 3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4

• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU.

Grafická karta: Ne

Multi GPU:

• NVIDIA 2-Way SLI® Technology
• AMD 3-Way CrossFireX™ Technology
• AMD 2-Way CrossFireX™ Technology

Zvuková karta:

• ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

• Intel® I211-AT
• Realtek® RTL8125-CG 2.5G LAN
• Intel® Wi-Fi 6 AX200
• Bluetooth v5.1

Rozšiřující sloty:

• 3x PCIe x16
• 1x PCIe 4.0 x1

RAID řadič: 0, 1, 10

SATA:

• 8x SATA 6Gb/s

M.2:

• 1x M.2_1 socket 3, with M Key, Type 2242/2260/2280
• 1x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

USB:

• zadní USB porty ( celkem 12 )
• 4x USB 3.2 Gen 1 (up to 5Gbps) ports
• 8x USB 3.2 Gen 2 (up to 10Gbps) ports
• přední USB porty ( celkem 8 )
• 2x USB 3.2 Gen 1 ports
• 2x USB 3.2 Gen 2 ports
• 4x USB 2.0 ports

Interní porty:

• 2x M.2 Socket 3
• 2x Aura RGB Strip Headers
• 2x Addressable Gen 2 header(s)
• 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1x TPM connector(s)
• 8x SATA 6Gb/s connector(s)
• 1x CPU Fan connector(s)
• 1x CPU OPT Fan connector(s)
• 3x Chassis Fan connector(s)
• 1x AIO_PUMP connector
• 1x H_AMP fan connector
• 1x W_PUMP+ connector
• 1x 24-pin EATX Power connector(s)
• 1x Front panel audio connector(s) (AAFP)
• 1x Slow Mode switch(es)
• 1x Reset button(s)
• 1x Node Connector(s)
• 1x LN2 Mode jumper(s)
• 1x Safe Boot button
• 1x ReTry button
• 1x System panel connector
• 1x T_Sensor Connector
• 1x W_IN header
• 1x W_OUT header
• 1x W_FLOW header
• 1x Start button
• 1x Speaker connector
• 1x USB 3.2 Gen 2 (up to 10Gbps) connector
• 1x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
• 1x 8-pin ATX 12V Power connector(s)
• 1x 4-pin ATX 12V Power connector(s)

Externí porty:

• 1x BIOS FlashBack™ Button(s)
• 1x Optical S/PDIF out
• 1x Clear CMOS button(s)
• 1x ASUS Wi-Fi Module
• 5x Gold-plated audio jacks
• 4x USB 3.2 Gen 1 (up to 5Gbps) ports
• 8x USB 3.2 Gen 2 (up to 10Gbps) ports
• 1x Anti-surge 2.5G LAN (RJ45) port
• Anti-surge LAN (RJ45) port

Obsah balení:

• 1x M.2 SSD screw package(s)
• User´s manual
• 4x SATA 6Gb/s cable(s)
• 1x Supporting DVD
• 1x ROG big sticker
• 1x Q-Connector
• 1x Wi-Fi Antenna(s)
• 1x Extension Cable for RGB strips (80 cm)
• 1x Extension cable for Addressable LED
• 1x ROG coaster(s)
• 1x ROG Thank you card

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
