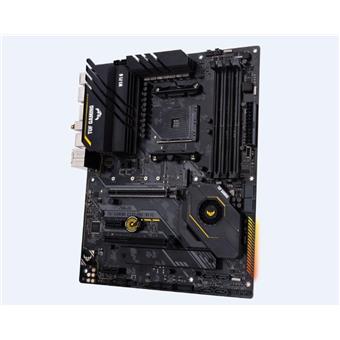

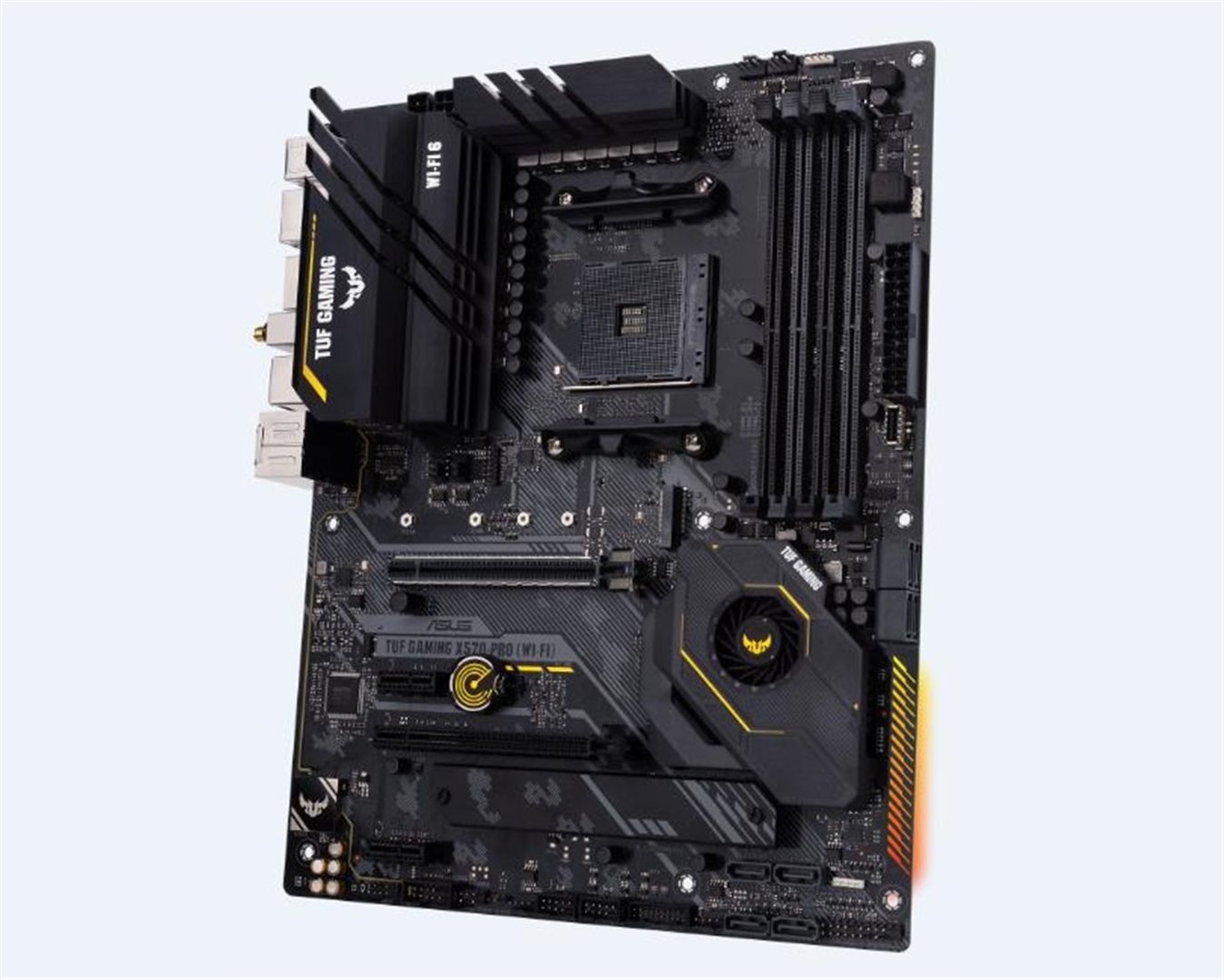

ASUS TUF GAMING X570-PRO WI-FI/ AM4/ ATX

Chipset: AMD X570

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: 3rd and 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™
Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti: 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4

• Dual Channel Memory Architecture

Grafická karta:

• Integrated Graphics Processor (na základě procesorů 3., 2. a 1. generace AMD s Radeon Grpahics)

Multi GPU: AMD 2-Way CrossFireX™ Technology

Zvuková karta:

• Realtek® ALC S1200A 8-Channel High Definition Audio CODEC

Síťová karta:

• Intel® I225-V 2.5Gb Ethernet
• Intel® Wi-Fi 6 AX200
• Bluetooth v5.1

Rozšiřující sloty:

• 3rd Gen AMD Ryzen™ Processors
• 1x PCIe 4.0 x16 (x16 mode)
• 2nd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
• 1x PCIe 3.0 x16 (x16 mode)
• 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
• 1x PCIe 3.0/2.0 x16 (x8 mode)
• AMD X570 chipset
• 1x PCIe 4.0 x16 (max at x4 mode)
• 2x PCIe 4.0 x1

RAID řadič: 0, 1, 10

SATA:

• 8x SATA 6Gb/s ports

M.2:

• 1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
• 1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

USB:

• zadní USB porty ( celkem 7 )
• 3x USB 3.2 Gen 2 port(s)(2 x Type-A +1 x Type-C)
• 4x USB 3.2 Gen 1 port(s)(4 x Type-A)
• přední USB porty ( celkem 7 )
• 1x USB 3.2 Gen 2 front panel connector port(s)(1 x Type-C)
• 2x USB 3.1 Gen 1 port(s)(2 x Type-A)
• 4x USB 2.0 port(s)(4 x Type-A)

Interní porty:

• 1x CPU Fan connector(s)
• 1x CPU OPT Fan connector(s)
• 3x Chassis Fan connector(s)
• 1x AIO_PUMP connector
• 2x Aura RGB Strip Header(s)
• 1x Addressable Gen 2 header(s)
• 1x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
• 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
• 1x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
• 1x SPI TPM header
• 8x SATA 6Gb/s connector(s)
• 1x 24-pin EATX Power connector(s)
• 1x 8-pin ATX 12V Power connector(s)
• 1x 4-pin ATX 12V Power connector(s)
• 1x Front panel audio connector(s) (AAFP)
• 1x System panel(s)
• 1x Clear CMOS jumper(s)
• 1x COM port header
• 1x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Externí porty:

• 1x PS/2 keyboard/mouse combo port(s)
• 1x DisplayPort
• 1x HDMI
• 1x LAN (RJ45) port(s)
• 1x Optical S/PDIF out
• 5x Audio jack(s)
• 1x BIOS FlashBack™ Button(s)
• 1x ASUS Wi-Fi Module
• 4x USB 3.2 Gen 1 (up to 5Gbps) ports
• 3x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C)

Obsah balení:

• User's manual
• I/O Shield
• 2x SATA 6Gb/s cable(s)
• 1x M.2 Screw Package
• 1x Supporting DVD
• 1x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
• 1x TUF GAMING Sticker
• 1x TUF Certification card(s)
• 1x M.2 Rubber Package(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
